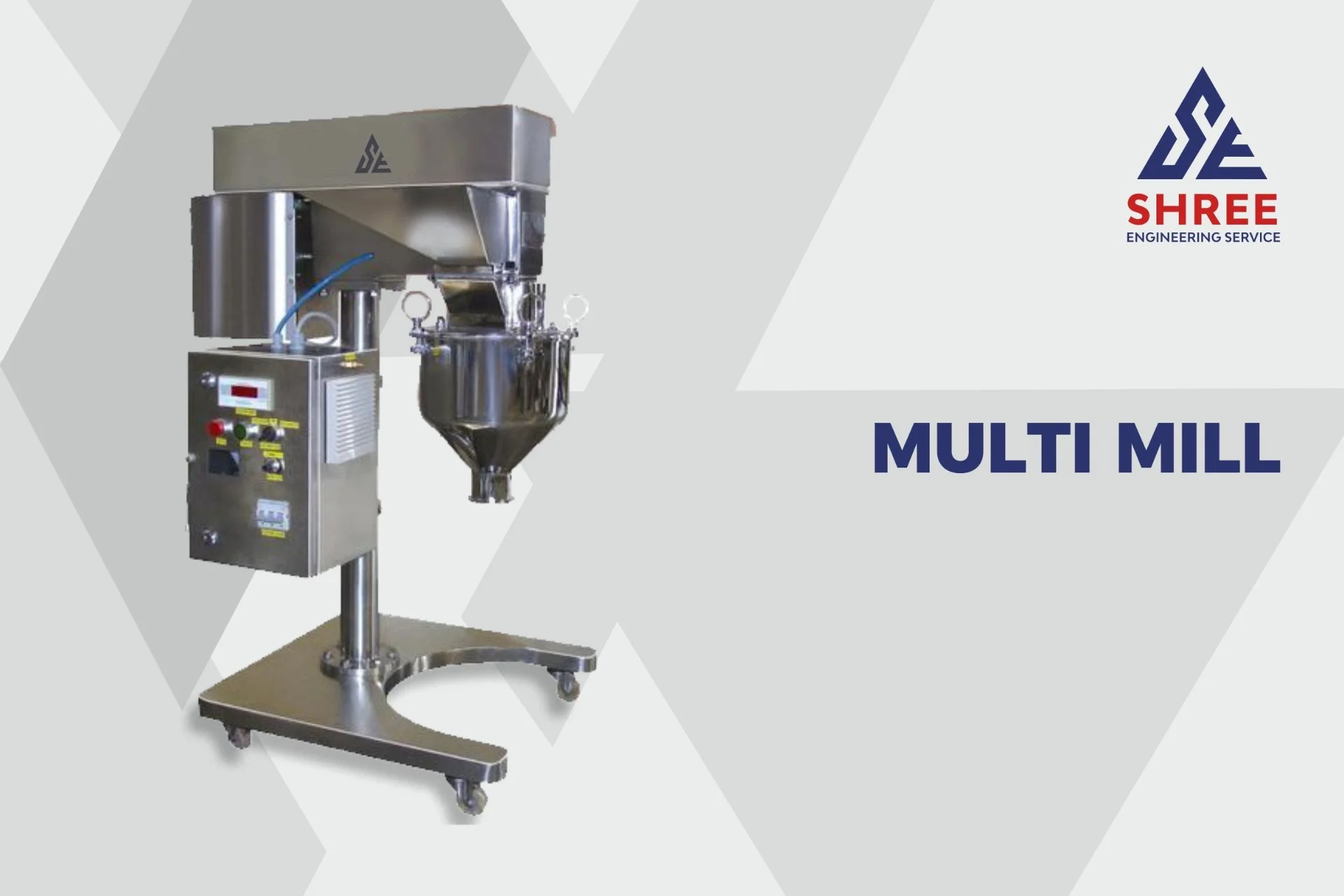

- Models available in Lab Model (1.0 HP ) regular Model (3.0 HP and Large Scale production Model (5.0 HP)
- Suitable for Milling of dry and wet cake and granules.
- cGMP Construction with Stainless Steel 316 or 316 L grade contact parts as per requirement.
- Wide range of screen sizes available from 0.5 mm to 12.0 mm hole sizes.
- It operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction.
- Material fed in the hopper, goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in the container kept below the processing chamber.
- Out put and quality of the final product depends on three main factors shape of beaters (knife/impact edges).
- Continuous duty operation with Noise less and Maintenance Free performance.
- Unit mounted on wheel for ease in mobility.
- Direct drive unit available with Variable frequency drive.
- Flame proof / ATEX electrical available on demand.
- All validation documents will be provided in our format, along with the equipment.
- Wide application of Multi Mill in Pharmaceutical, API, Speciality Chemical and Powder processing industries.
